Stunt Scooter ProfessionalBlack Blue 3591196 2017 – ¥14,907
Product Details
Specifications
| Height(cm) | 58, |
|---|---|
| Length(cm) | 58, |
| Model | C-02, |
| Deck Size | 525*110mm, |
| Handlebar Width (cm) | 58, |
| Diameter Of Wheels(cm) | 11, |
| Dia./Width of wheel | 110 mm, |
| Bearings | ABEC-7, |
| Hardness | 88A, |
| Function | Professional, |
| Wheel Material | PU, |
| Deck Material | 6061 Aluminum, |
| Frame Material | Aluminium, |
| Fork Material | Aluminium, |
| Material | Aluminium, |
| Max Supporting Weight(Kg) | 110, |
| Rider Height (CM) | <190, |
| Quantity | 1pc, |
| Net Weight(kg) | 4.7, |
| Net Dimensions(cm) | 58*14*70, |
Photos
Learn More About This Product
- Q:How to Assemble a Scooter？

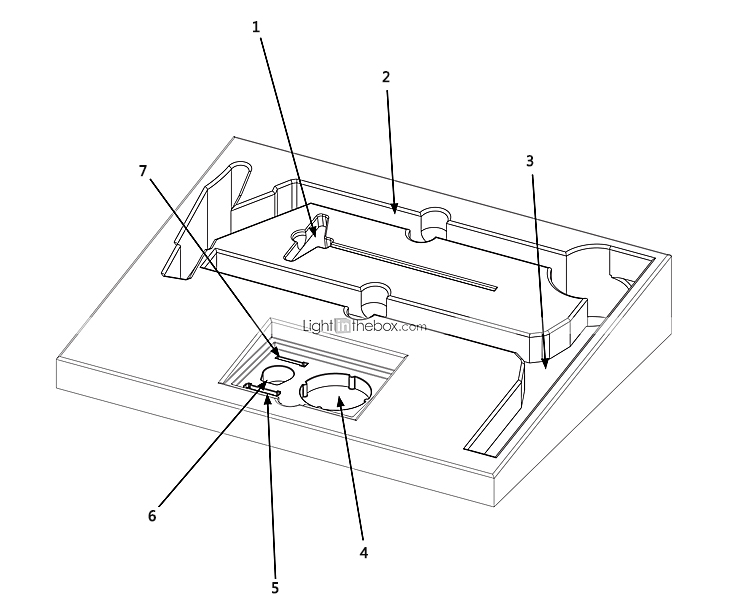

- What’s in the box?
-
1.allen Tool 2. deck incl. fork,back wheel,brake and headset 3. bar incl.grips 4.front Wheel 5.axle incl.axle bolt 6.clamp 7.compression bolt

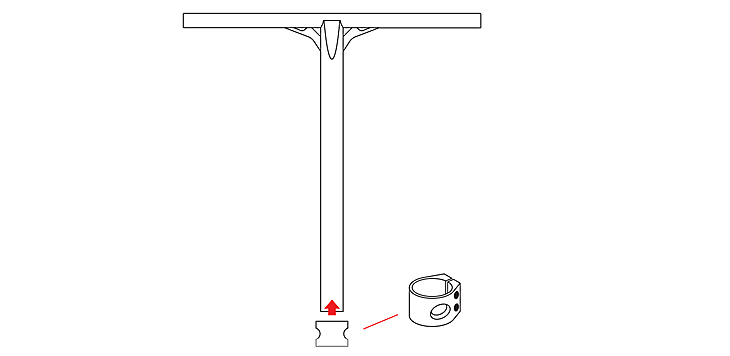

- 1. Slide the clamp up around the vertical bar.
- 2. Slide the vertical bar into the headset.
-

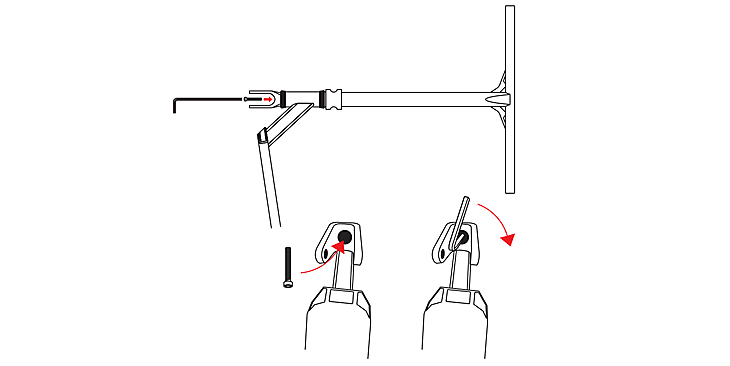

3. Using the Allen wrench, bolt the vertical bar to the deck and compression system.
- Your scooter is ready to ride!
4. Ensure that the vertical bar is positioned properly and facing forward.

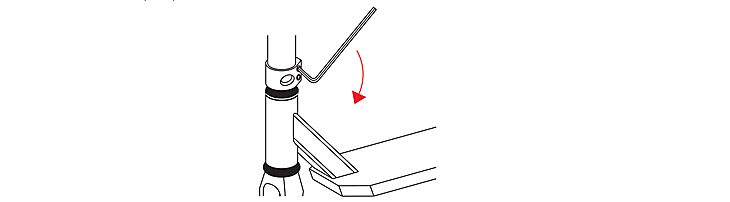

5. Tighten the clamp using the Allen wrench.

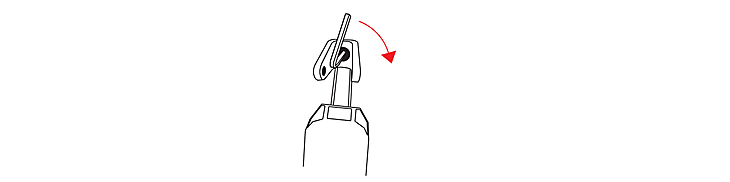

6. Tighten the bolt to ensure the compression system is secure. This will prevent it from loosening while you ride.
7. Slide the axle through one side of the fork and add one spacer/washer before positioning the wheel.
8. When the wheel is in place, put the second spacer/washer in position and slide the axle through.
9. Tighten the axle using the Allen wrench.
